WD219BR

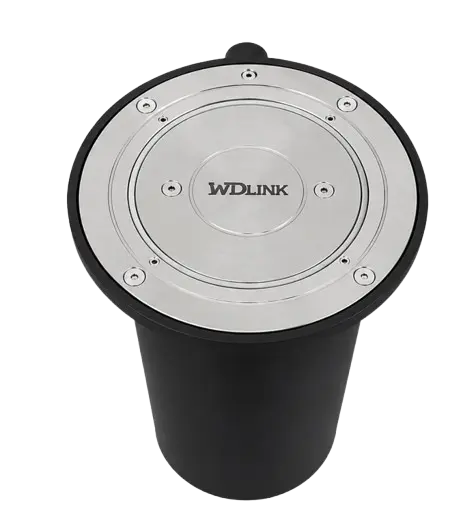

The WD219BR Automatic Rising Bollard is a high-performance vehicle access control solution designed to protect restricted areas and manage traffic flow efficiently. Built with a heavy-duty steel body and a stainless-steel top cover, it offers excellent durability, impact resistance, and reliable operation in demanding environments.

Veuillez remplir le formulaire ci-dessous et un de nos représentants vous contactera très prochainement.

    INFORMATIONS DE CONTACT

    Nº12 Lot, Zone Industrielle Gzenaya, Tanger 90000

    +212 660-790342
    +212 539-351866

    info@wdlinkma.com

    QUI NOUS SOMME !

    WDLink Maroc en tant que distributeur au Maroc de Contrôle d’accès Barrière Parking, Tourniquets …) et Point de vente dispose d’une large gamme de produits et systèmes permettant de couvrir vos besoins dans ce secteur.

    Suivez nous!

    Il suffit d’une seconde pour être le premier à découvrir nos dernières nouveautés et promotions …

    Description

    Features

    icon FeaturesMinimum passing pressure: It can pass container trucks of less than 120-80 tons.
    icon FeaturesLinkage interface:Traffic light, infrared, ground sense, license plate recognition.
    icon FeaturesIn case of power failure:It can be lowered manually.
    icon FeaturesWaterproof integrated movement: It can be soaked in water.
    icon FeaturesControl system: PLC control programming command.
    icon FeaturesIntegrated motor core: The stroke is 760mm, the overall outer diameter of the oil
    cylinder is 60mm, and the rod diameter is 16mm.

    Specifications

    System control : PLC controller
    Rated voltage : AC220V 50Hz
    System power (W) : 350W
    Rise time : 6S for 1 meter
    Descent time : 6S for 1 meter
    Operating temperature : (-40℃ ~ 75℃)
    Storage environment : (-40℃ ~ 75℃)
    texture of material : SUS 304/316
    Height of lifting column : ≤600mm
    Standard thickness : 6mm
    Lifting column diameter : 219mm
    size : 219 × 760 mm (Diameter × Height)
    Weight : ±120KG
    Column : Wire drawing / mirror
    Led : 12V (acrylic lamp ring)
    LED color : 12 convertible
    Reflective film : 2 3M diamond grade
    Protection grade of movement : IP68
    Rising and falling : Reverse operation
    Noise during plant operation : ≤60dB
    power switch : 220V
    Control solenoid valve : 24V
    Static state : No current / off state
    Remote control range : 50M - 100M
