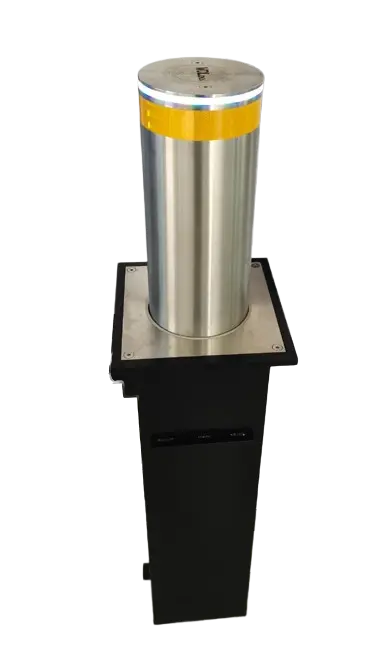

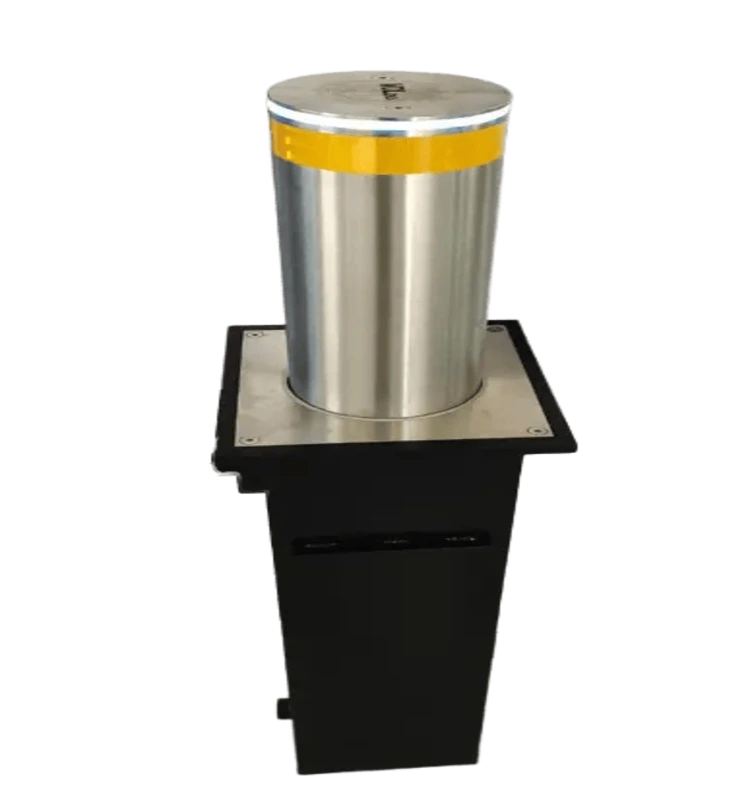

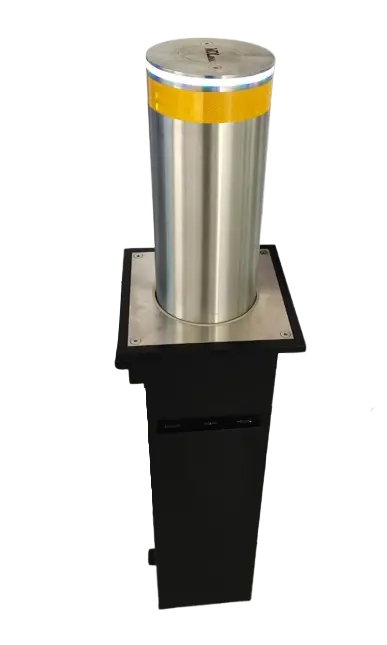

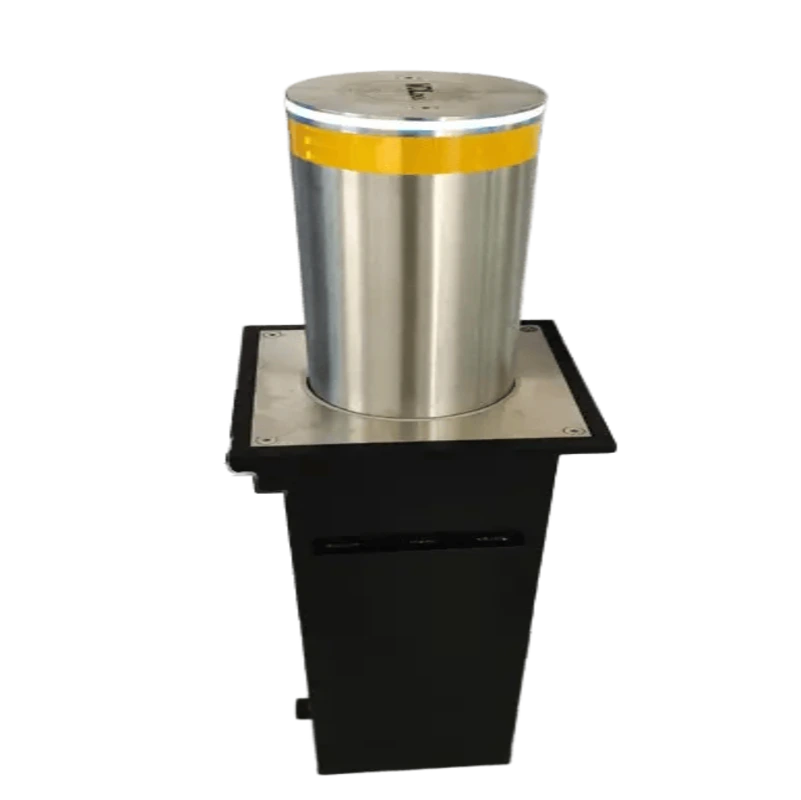

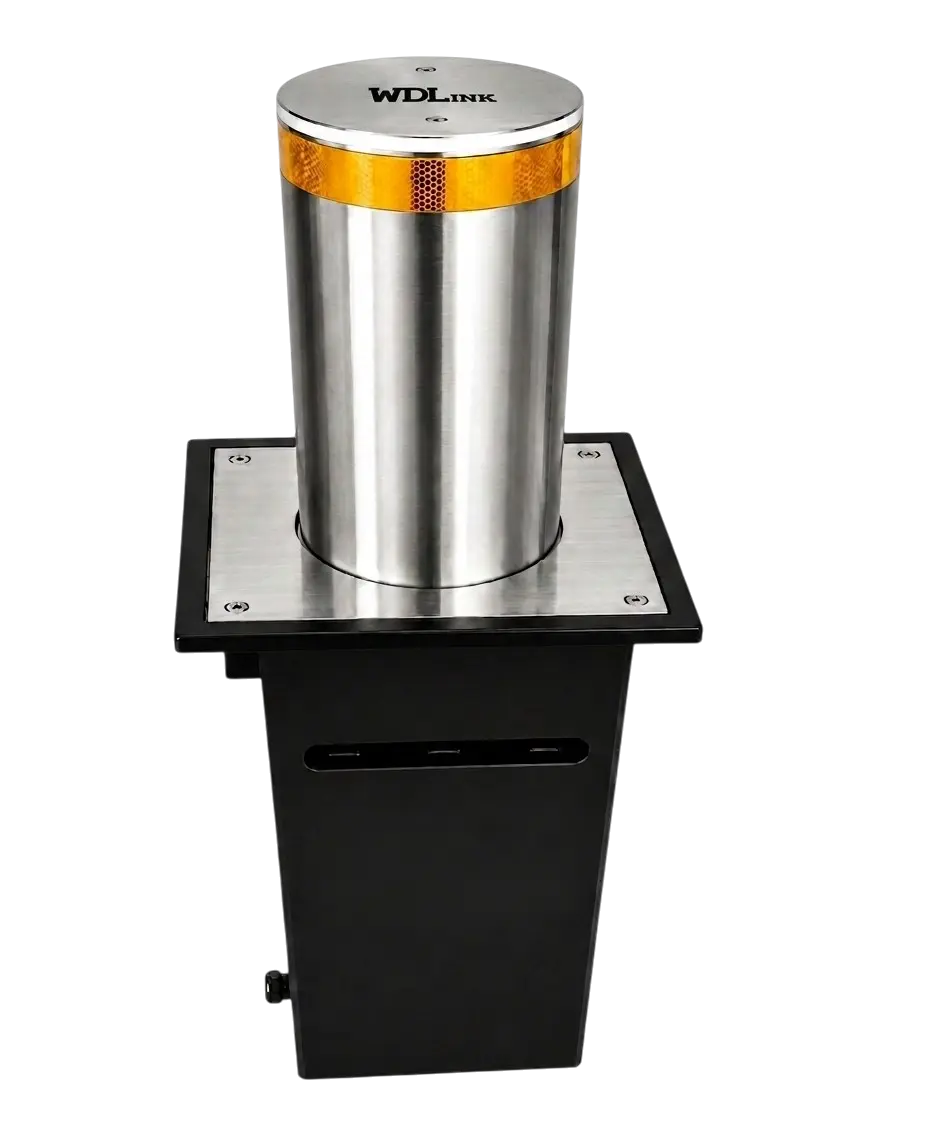

WD219B
WD219B is a high-quality automatic bollard which is used widely to protect security areas from vehicle intrusion. It is an ideal solution for entrance with high security requirements. Raising time of WD219B is 3 seconds. Even if the intrusion is from high tonnage vehicle in high speed, the bollard will stop the vehicle easily because it is so solid that the vehicle will break after impact instead. There are also some extra safety precautions in the design of WD219B.
The LED bar on the bollard can effectively avoid accidents caused by poor vision of drivers at night. In case of power failure, the bollard can be lowered manually. Equipped with PLC (Programmable Logic Controller), various control methods can be achieved easily, such as biometric readers, remote control and push button station.
The bollard is commonly found in customs, ports, prisons and military bases where traffic guidance is needed to protect people and property. This product provides ideal access control in areas mentioned above and raises the level of security.
Veuillez remplir le formulaire ci-dessous et un de nos représentants vous contactera très prochainement.
INFORMATIONS DE CONTACT
QUI NOUS SOMME !
WDLink Maroc en tant que distributeur au Maroc de Contrôle d’accès ( Barrière Parking, Tourniquets …) et Point de vente dispose d’une large gamme de produits et systèmes permettant de couvrir vos besoins dans ce secteur.
Suivez nous!
Il suffit d’une seconde pour être le premier à découvrir nos dernières nouveautés et promotions …
Features
Minimum passing pressure: It can pass container trucks of less than 120-80 tons.
Linkage interface:Traffic light, infrared, ground sense, license plate recognition.
In case of power failure:It can be lowered manually.
Waterproof integrated movement: It can be soaked in water.
Control system: PLC control programming command.
Integrated motor core: The stroke is 1000mm, the overall outer diameter of the oil
cylinder is 60mm, and the rod diameter is 16mm. Specifications
| System control : | PLC controller (200*400*500) |
|---|---|
| Rated voltage : | AC220V 50Hz |
| System power (W) : | 350W |
| Rise time : | 6S for 1 meter |
| Descent time : | 6S for 1 meter |
| Operating temperature : | (-40℃ ~ 75℃) |
| Storage environment : | (-40℃ ~ 75℃) |
| texture of material : | SUS 304/316 |
| Height of lifting column : | ≤600mm |
| Standard thickness : | 6mm |
| Lifting column diameter : | 219mm |
| Box size : | 400*400*1100 |
| Weight : | ±150KG |
| Column : | Wire drawing / mirror |
| Led : | 12V (acrylic lamp ring) |
| LED color : | 12 convertible |
| Reflective film : | 2 3M diamond grade |
| Protection grade of movement : | IP68 |
| Rising and falling : | Reverse operation |
| Noise during plant operation : | ≤60dB |
| power switch : | 220V |
| Control solenoid valve : | 24V |
| Static state : | No current / off state |
| Remote control range : | 50M - 100M |
