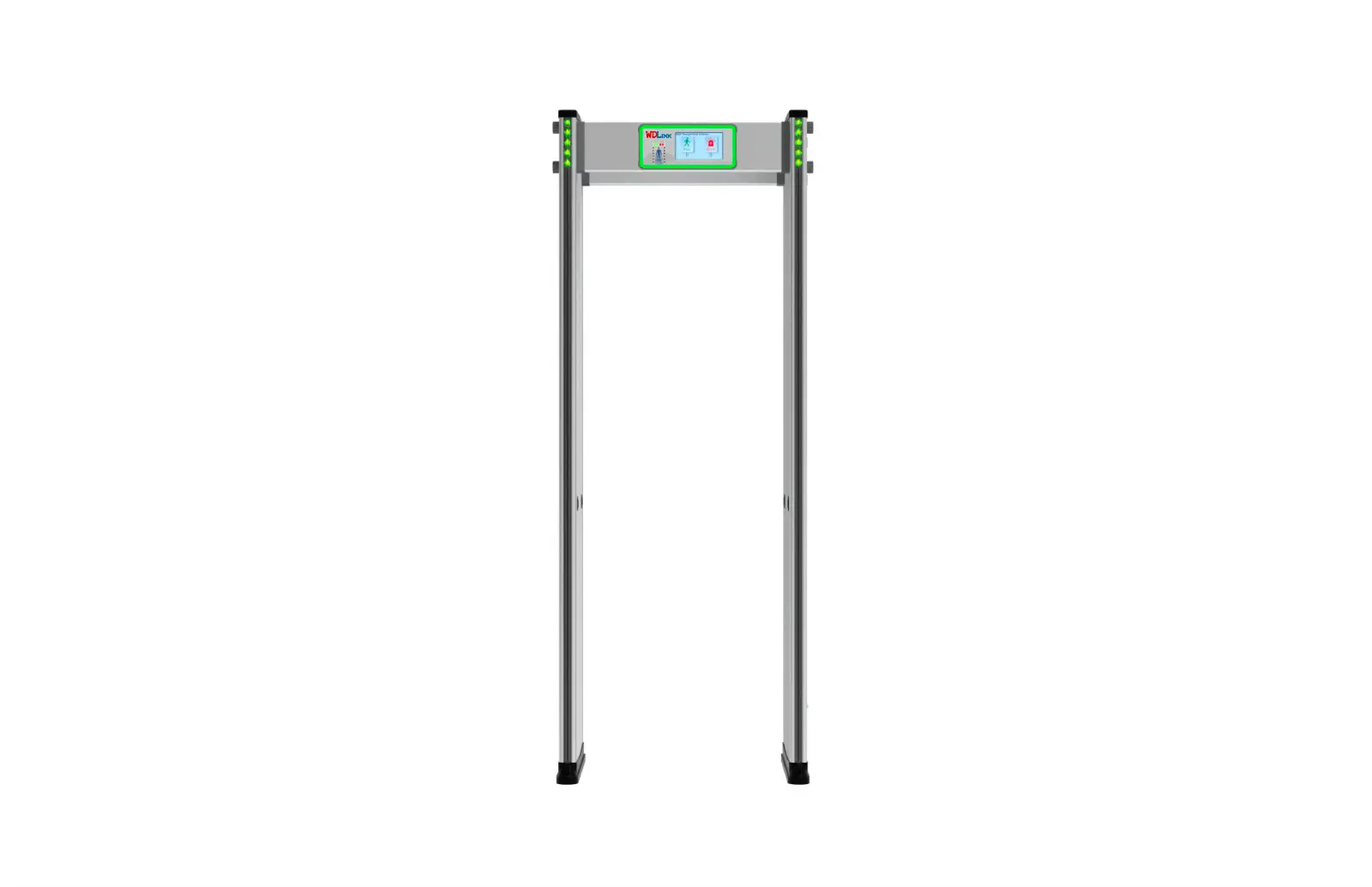

WD6180
METAL DETECTOR
The WD6180 Access Control Panel is designed for use by authorized personnel with specific,
multi-level security with password protection, only the authorized person can operate
Sound & LED alarm: Both Side LED indica-tor, easily show where the metal is, Automatically
count passengers and alarm times.
Veuillez remplir le formulaire ci-dessous et un de nos représentants vous contactera très prochainement.
INFORMATIONS DE CONTACT
QUI NOUS SOMME !
WDLink Maroc en tant que distributeur au Maroc de Contrôle d’accès ( Barrière Parking, Tourniquets …) et Point de vente dispose d’une large gamme de produits et systèmes permettant de couvrir vos besoins dans ce secteur.
Suivez nous!
Il suffit d’une seconde pour être le premier à découvrir nos dernières nouveautés et promotions …
Features
Harmless to human body: is harmless with heart pacemaker, pregnant women,magnetic floppy, recording tapes, etc.7 -inch tuch LCD color screen, graphic operation interface, IN/OUT counter Sound & LED alarm: Both Side LEDInput power: AC264-85V/50Hz. Standby power consumption: s12W, ultra-low power consumption, low radiation. Frequency: 5 bands, power on adaptive.18 partitions to accurately determine the location of metal objects. Sensitivity adjustment range: total sensitivity are 1000-0 level adjustable, partition 255-0 level.Anti-interference power: digital circuit design, anti-missing alarm, infrared anti-disturbance, strong resistance to external interference.Alarm function: sound and light alarm at the same time, and can record the number of alarm 99,999 times.Easy assembly: designed with only 2 pieces cables and & screws, simply-to- follow instruction.Using high density fireproof matenal; Program Self-diagnostic when power on, no need initial or periodic calibration .Alarm strength indicator on control panel Password protection, only the authorized person can operate.Remote control: for secunty gatedebugging (optional function).
Specifications
| Features : | ||
|---|---|---|
| Model : | WD6180 | |
| Power supply : | AC264 - 85V/50Hz | |
| Working Temperature : | °45 ~ 20-C | |
| Storage temperature: | °60+ ~ 20-C,humidity:%95 ~ %20 | |
| Standard External size : | 2255mm(H) X850mm(W)X580mm(D) | |
| Standard Internal size: | 1995mm(H)X700mm(W)X510mm(D) | |
| Package size for door panels : | 190*560*2280mm *1ctn | |
| Package size for control unit: | 270*390*760 mm*1ctn | |
Fiche Technique WD6180
249 KB
15-08-2025
Related products
WD5180
METAL DETECTOR
The WD5180 Access Control Panel is designed for use by authorized personnel with specific,
multi-level security codes. It allows authorized users to change settings such as detection
Program and Sensitivity. A tamper alarm sounds within 10 seconds after the Access
Touchpad is pressed, unless a proper access code is entered.
