Features
Simple, compact and generous machine appearance
Super wide mains input range
Excellent microprocessor to ensure reliable operation
Automatic adjustment of the AC mains power boost, step-down, stable voltage output
Mains restart function
Output modified sine wave
Automatic charge in off-mode
Cold start function
Compatible generators
Application
PC/Fax/Modem
Small server/Lan
Cash-counting
Attendance machine
Miniature Terminal Equipment
SOHO Equipment
Specifications

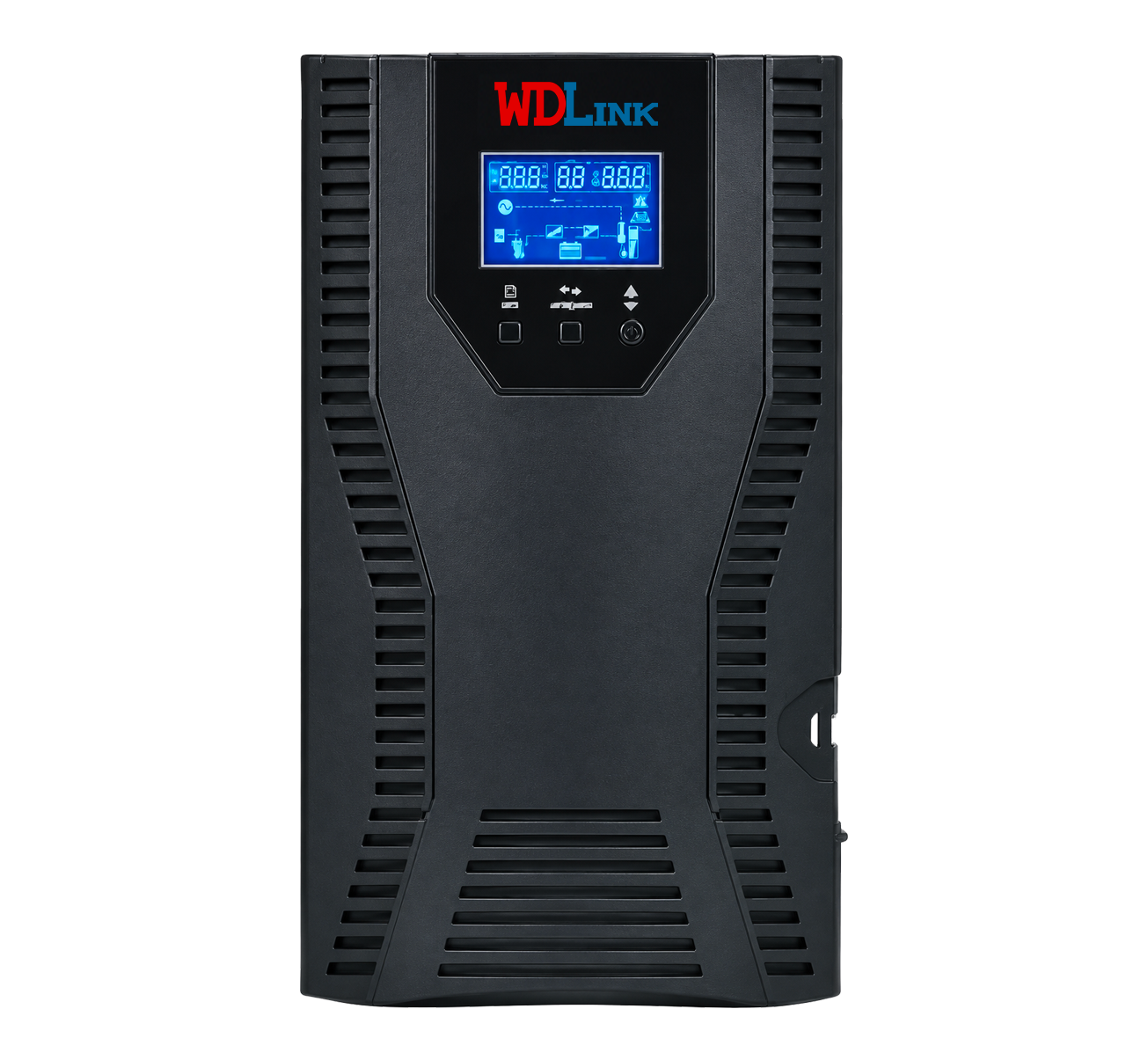

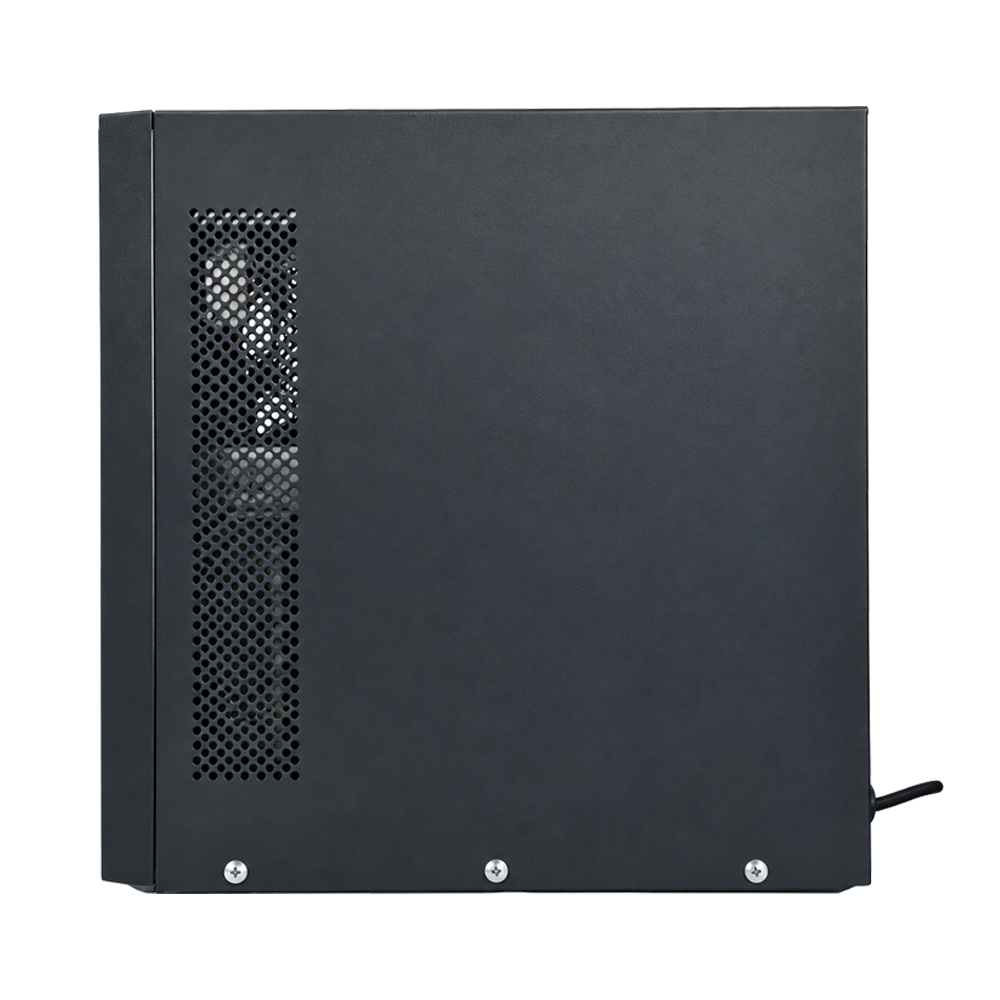

Line Interative UPS | |
---|---|
Model : | WD3000VA |
Capacity : | 3000VA/1600W |
Input | |
Voltage : | 220VAC |
AC Mains Input Voltage Range : | 145-280 VAC (same as AC mains) |
Frequency : | 50 Hz/60Hz |
Output | |
Voltage Range : | ±10% |
Frequency Range : | 50 Hz ±1 Hz(adaptive) |
Transfer Time : | 2-6ms,<10ms |
Waveform : | Pure sine wave |
Battery | |
Battery Type & Quantity : | 12 V7Ahx4 |
Battery Charging Time : | 4 hours charge to 90% |
LED Indicators | |
AC Mode : | Green light |
Battery Mode : | Red light flash |
Audible Alarm | |
Battery Mode: | Alarm beeps every six seconds |
Low Battery: | Alarm beeps every second |
Overload : | Alarm beeps twice every second |
Fault : | Alarm beeps continuously |
Protection Function | |
Comprehensive Protection : | Overload, deep discharge and over-charge protection |
Environment | |
Temperature And Humidity : | Relative humidity %90-0 and temperature °40 -0C (No-condensing) |
Noise : | less than 40dB at one meter distance |
Environment | |
Dimensions D X W X H (mm): | 405x144x213 |
Net Weight (kgs) : | 17.6 |
