WD04
Smart Door Lock

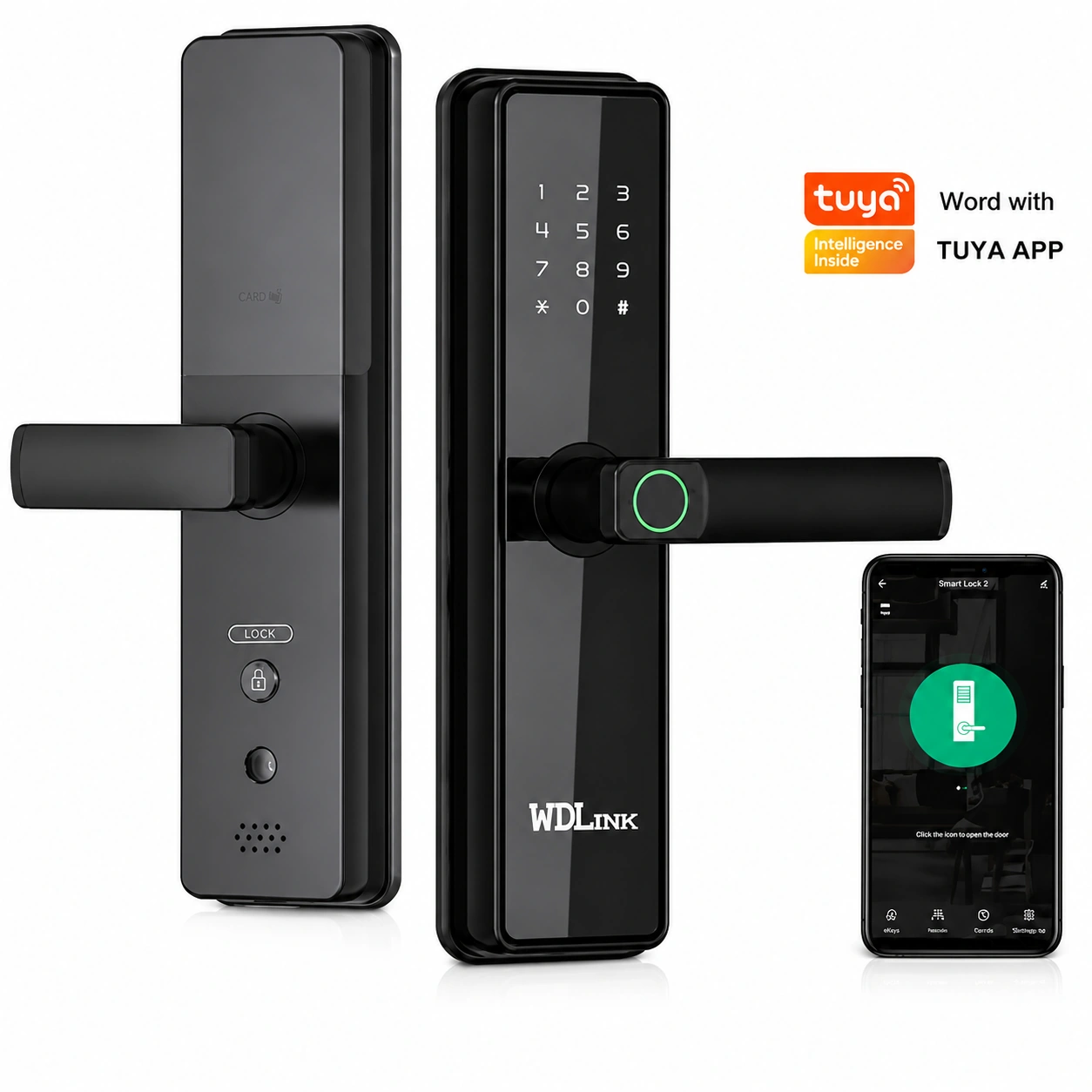

Tuya WD04 Smart WiFi Lock with Fingerprint and Cats Eye Camera
Veuillez remplir le formulaire ci-dessous et un de nos représentants vous contactera très prochainement.
INFORMATIONS DE CONTACT
QUI NOUS SOMME !
WDLink Maroc en tant que distributeur au Maroc de Contrôle d’accès ( Barrière Parking, Tourniquets …) et Point de vente dispose d’une large gamme de produits et systèmes permettant de couvrir vos besoins dans ce secteur.
Suivez nous!
Il suffit d’une seconde pour être le premier à découvrir nos dernières nouveautés et promotions …
Description
Features
Access by Wifi ( Tuya APP )/ Bluetooth ( TTLock ), password, fingerprint, RFID card, mechanical key.TUYA (Smart life) & TT lock App versions are available to choose from.（Bluetooth/WIFI）
Compatible with various mortise to fit %99 of doors. Lock body: 3585 double tongue.Uniquely stylish thin panel, it can fit most Aluminum doors.
One-Touch-Access Biometric Fingerprint sensor on the reader.Strong and secure Stainless steel lock panel, anti-corrosion and sturdy.
Back-up USB external power supply interface, in case the power is dead.Freely reversible handle, support to change the direction of door lock handle installation
left or right.
Upgraded structure with waterproof rubber, which could be use for the outside gate.Specifications
| Features : | ||
|---|---|---|
| Model : | WD04 | |
| Material : | Aluminum alloy | |
| Finish : | Black | |
| Lock Size : | 248*63*21mm | |
| Door Thickness : | 38-55(mm) | |
| Static current : | < 50uA | |
| Dynamic current : | < 200mA | |
| Fingerprint+RFID+ Password(TT) : | 300+200+100 | |
| Fingerprint+RFID+ Password(Tuya) : | 100+100+100 | |
| Fingerprint Sensor : | Semiconductor | |
| Fingerprint contrast time : | < 0.6Second | |
| Fingerprint identification Angle : | 360° | |
| False Rejection Rate : | < %0.1 | |
| False Recognition Rate : | < 0.0001% | |
| Reaction time : | < 0.1 Second | |
| Power type : | 6V | |
| Emergency power : | 5VDC | |
| Working temperature : | 25- °C~ 60 °C | |
| Working Relative Humidity: | 20%~95 RH | |
| Keyboard : | Touch standard 12-bit keyboard | |
| Password Length : | 4-8 digits | |
| Phantom password : | 32 digits | |
| Low voltage alarm : | 4.6+0.2V | |
| Unlock time : | < 1Second | |
| Working Temperature : | 20- to 45 degree | |
| Version 1.0 : | TUYA WIFI | |
| Version 2.0 : | TT Lock Bluetooth | |
| Version 0.1 : | No app, basic version | |
| Battery : | 4*AAA alkaline batteries | |
| Battery Life : | 7000 times normal open | |
Fiche Technique WD04
305 KB
27-03-2025
User Manual WD04
640 KB
27-03-2025
